Equipment Function: This equipment utilizes lasers to precisely scribble and clean the edges of the thin-film functional layer of electrochromic glass (EC Glass), enabling the partitioning and isolation of circuits and the insulating encapsulation of devices.
Product Description
Equipment Function: This equipment utilizes lasers to precisely scribble and clean the edges of the thin-film functional layer of electrochromic glass (EC Glass), enabling the partitioning and isolation of circuits and the insulating encapsulation of devices.
?
This equipment is a key component in the production of electrochromic devices. By integrating multiple laser processing techniques, it divides large areas of coated glass into multiple independent and controllable units, removing excess film from the edges to ensure the electrical safety and environmental stability of the devices.
?
Wide Application Areas: EC Electrochromic Glass
?

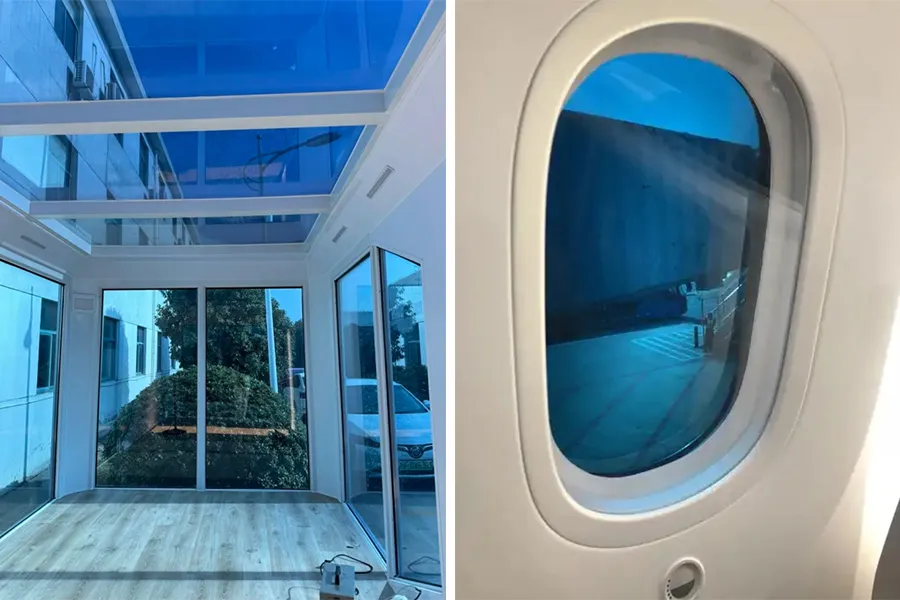

Sample Images
?
Equipment Parameters
|
Product Name |
EC Electrochromic Laser Marking and Edging |
|
|
Finish Size |
1300*3000 mm (customizable) |
|
|
Accuracy |
XY axis positioning accuracy (mm) |
±0.003 |
|
XY axis repetition accuracy (mm) |
±0.002 |
|
|
Z-axis positioning accuracy (mm) |
±0.01 |
|
|
Z-axis repeatability accuracy (mm) |
±0.005 |
|
|
Laser |
Laser type |
Infrared/Green light |
|
Laser power (W) |
≥10W |
|
|
Process parameters |
Processing line width (μm) |
custom made |
|
Height of melt accumulation on both sides (nm) |
< ±50 |
|
|
Flatness of the groove bottom (nm) |
< ±50 |
|
|
Platform Flatness |
<150 μm |
|
|
Processing Speed |
≥1000mm/s |
|
|
Outline Dimension |
11320x2900x2600 mm (length, width, height) |
|
|
Weight |
≥7.5 tons |
|
