Laser wafer marking equipment

Equipment Functions: This equipment utilizes high-precision UV laser cold processing technology, specifically designed for efficient marking of semiconductor wafers.

Share:

Product Description

Equipment Functions: This equipment utilizes high-precision UV laser cold processing technology, specifically designed for efficient marking of semiconductor wafers. Equipped with an intelligent vision positioning and automated control system, it can permanently and precisely mark various wafers, including silicon, SiC, and GaN, with features such as QR codes, serial numbers, wafer IDs, and anti-counterfeiting markings. The markings are?highly clear, easily recognizable, and durable.

?

The processing is free from mechanical stress, thermal damage, and contamination, ensuring wafer integrity and device performance, meeting the traceability requirements of automotive-grade, high-reliability chips. The equipment operates stably and is highly adaptable, seamlessly integrating with automated production lines to provideefficient, precise, and reliable marking solutions for semiconductor manufacturing.

?

Wide Application Areas: Primarily used in the semiconductor wafer industry.

?

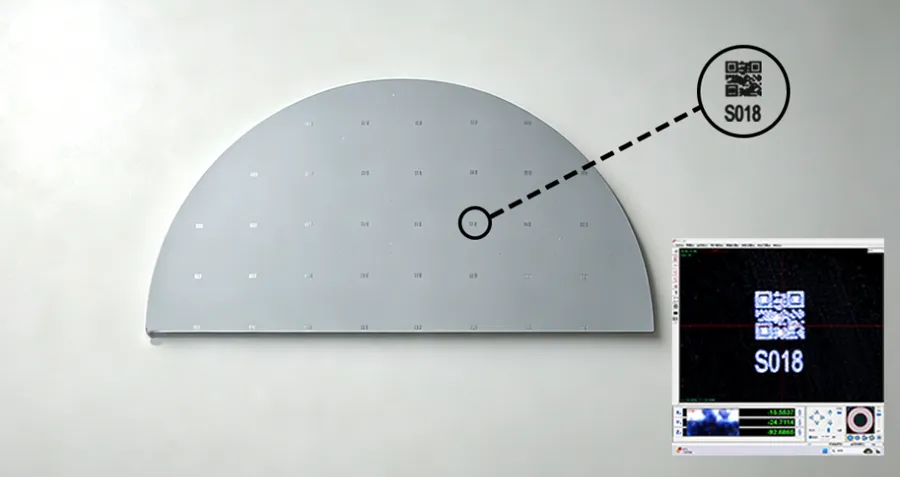

Sample Images

Laser wafer marking equipment

?

Equipment Parameters

Product Name

Laser wafer marking equipment

Processing Size

6-12 inches

Accuracy

Marking accuracy (mm)

±0.1 mm (contour positioning), ±0.01 mm (mark positioning)

Laser

Laser type

UV?picosecond

Laser power (W)

≥5

Process Parameters

Minimum processing character (mm)

≥0.15

Lens processing area?(mm)

≥50

Overall Processing Accuracy

±0.02mm

Inspection Function

Integrate OCR or 2D code reading for quality re-inspection

Loading & Unloading

Fully automated robotic loading/unloading system (optional)

Communication

Supports the SECS/GEM protocol and MES system integration

Outline Dimension

1450*1850*2200 (length, width, height)

Weight

Approximately 1.6 tons
