Thin-film photovoltaic flexible roll-to-roll marking system

Equipment Functions: Supports scribing of flexible thin-film solar cells up to 400mm wide, integrating all key laser scribing processes (P1 to P4) onto a single automated production line. This allows for continuous, high-speed etching of the cell circuitry from the flexible thin-film material.

Inquire Now Next Product

Product Description

Equipment Functions: Supports scribing of flexible thin-film solar cells up to 400mm wide, integrating all key laser scribing processes (P1 to P4) onto a single automated production line. This allows for continuous, high-speed etching of the cell circuitry from the flexible thin-film material. Closed-loop sensors combined with servo correction algorithms ensure continuous, uninterrupted production of the flexible thin film, enabling efficient and low-cost mass production. The equipment employs advanced optical beam splitting technology, supporting simultaneous scribing with four or more laser beams, significantly reducing the production cycle time for a single module to 90 seconds or even faster.

Wide Application Areas: Flexible thin-film solar cell mass production lines

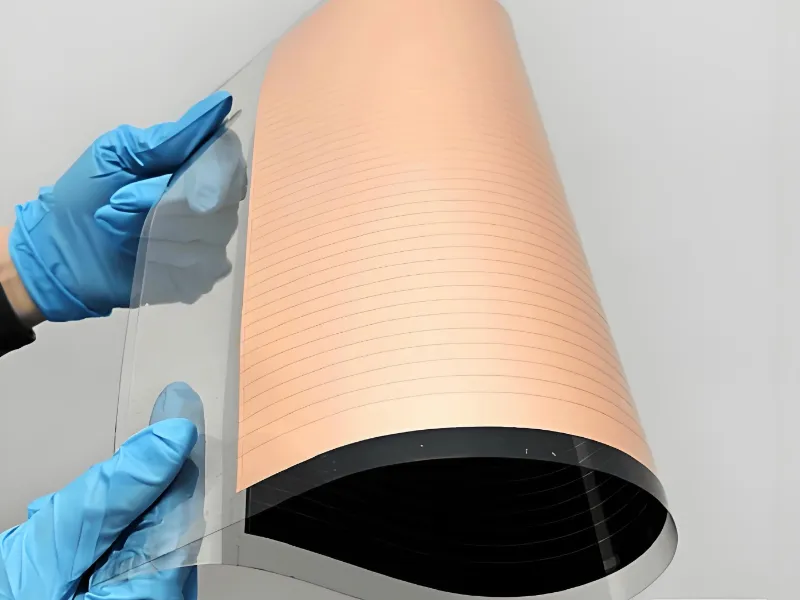

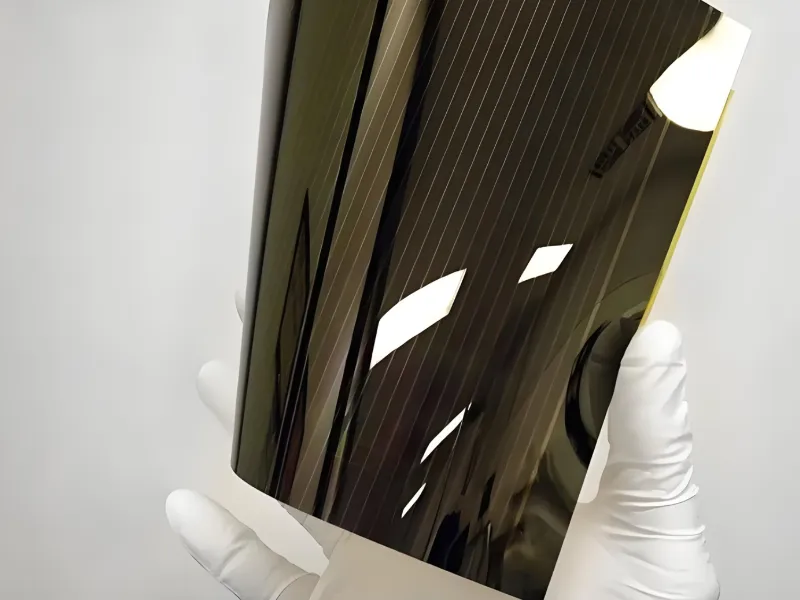

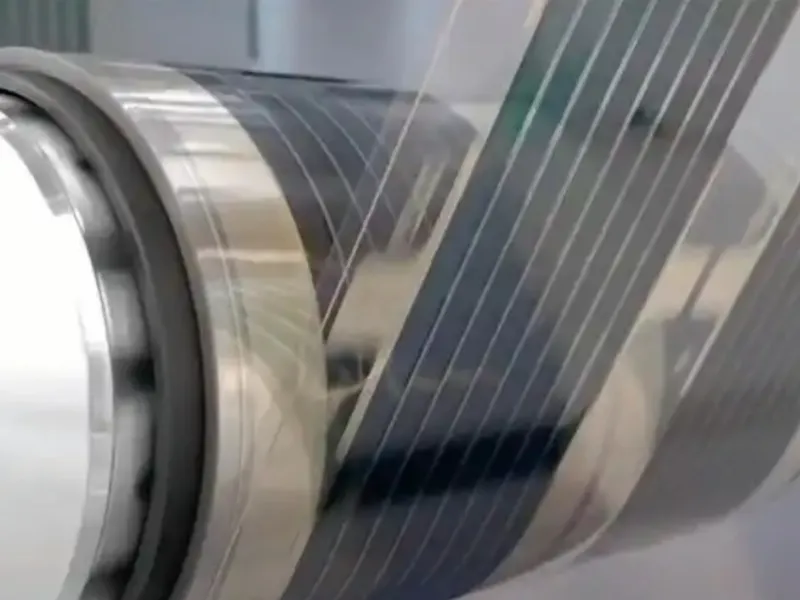

Sample Images

Equipment Parameters

Product Name	Thin-film photovoltaic flexible roll-to-roll marking system
Finish Size	The width can be customized to ≥400 mm.
Accuracy	XY axis positioning accuracy (mm)	±0.003
	XY repositioning accuracy (mm)	±0.002
	Z-axis positioning accuracy (mm)	±0.01
	Z Repositioning Accuracy (mm)	±0.005
Laser	P1 laser type	Infrared nanosecond/infrared picosecond
	P1 laser power (W)	≥50W
	P2/P3 laser type	Green light picosecond/ultraviolet picosecond
	P2/P3 laser power (W)	≥30W
	P4 laser type	Infrared nanosecond
	P4 laser power (W)	≥200W
Process Parameters	Number of spectral channels	≥4 channels
	Processing speed (mm/s)	≤1000mm/s
	Working width （μm）	≥20 (customizable according to P123 line width)
	Processing heat effect (μm)	≤10
	Processing position accuracy (μm)	≤±10
	Rhythm time (s/m)	90
	Clear edge resistance detection (G Ω)	≥4
Other	Retract/ extend tension controller	support
Other	Ultrasonic dust removal device	support
Outline Dimension	6200x2700mmx2600mm (length, width, height)
Weight	Approximately 6 tons
