Understanding Multi-Pass Scribing Techniques

What is Multi-Pass Scribing?

Multi-pass scribing is a laser processing technique where a laser beam is applied multiple times over the same area to achieve desired material characteristics. This method enhances precision in shaping and isolating thick film materials.

Benefits of Multi-Pass Scribing

• Reduces taper angles effectively
• Improves edge quality and material integrity
• Aids in achieving better insulation properties

Required Tools for Multi-Pass Scribing

Essential Equipment List

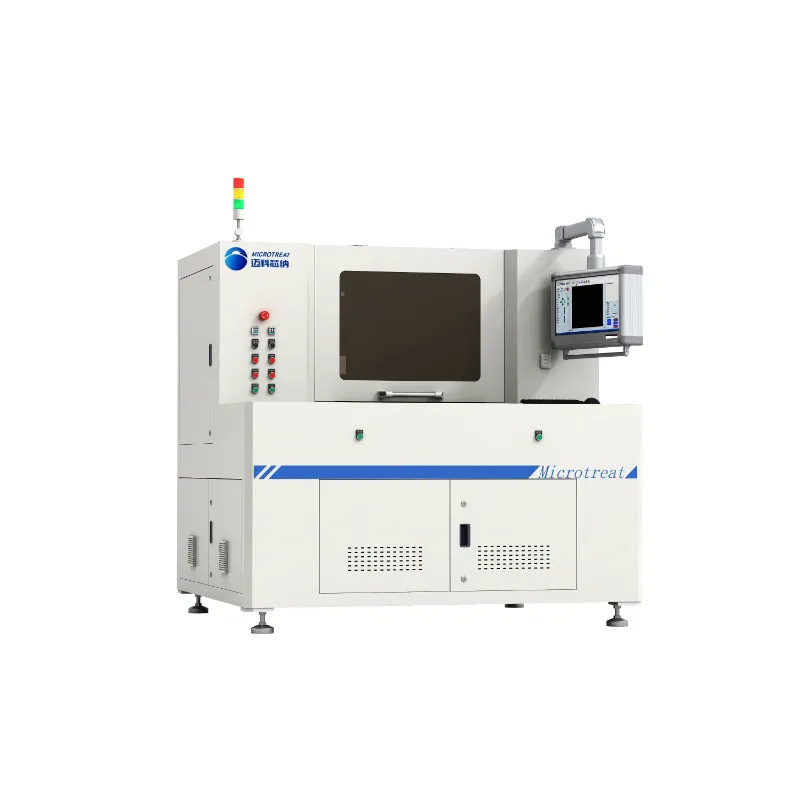

• Laser scribing machine (such as Microtreat’s models)
• Safety goggles to protect eyes
• Material substrate for testing
• Measuring tools for thickness and angle
• Software for controlling the laser parameters

Step-by-Step Guide to Multi-Pass Scribing

First Step: Preparing the Laser Scribing Machine

Start by setting up your Microtreat laser scribing machine according to the manufacturer's instructions. Ensure all safety measures are in place and the machine is calibrated correctly.

Second Step: Material Selection and Preparation

Choose the appropriate thick film material for your project. Clean the surface thoroughly to remove any contaminants that can affect the scribing process.

Third Step: Configuring Laser Parameters

Adjust the laser settings including pulse frequency, power, and speed to suit the thickness of the material. Utilize the software to experiment with these parameters before the actual scribing.

Fourth Step: Executing Multi-Pass Scribing

Run the laser scribing process, focusing on multiple passes over the same area. Monitor the process to avoid overheating or damaging the material. Aim for consistent and overlapping passes to minimize taper angles.

Fifth Step: Quality Inspection and Testing

After completing the scribing, inspect the results. Use your measuring tools to evaluate the taper angles and edge quality. Make adjustments as necessary for future scribing tasks.

Common Mistakes to Avoid

Neglecting Material Properties

Always consider the specific properties of the material you are working with. Some films may react differently to the laser, impacting taper angles.

Overlooking Safety Precautions

Don’t forget to wear safety goggles and follow all safety protocols while operating the laser scribing machine to prevent accidents.

Conclusion

Utilizing multi-pass scribing effectively reduces taper angles in thick films, leading to enhanced performance in applications. With the right tools and steps, you can achieve high-quality isolation using Microtreat laser scribing machines. For further information, refer to your product manual or reach out to Microtreat for professional assistance.
