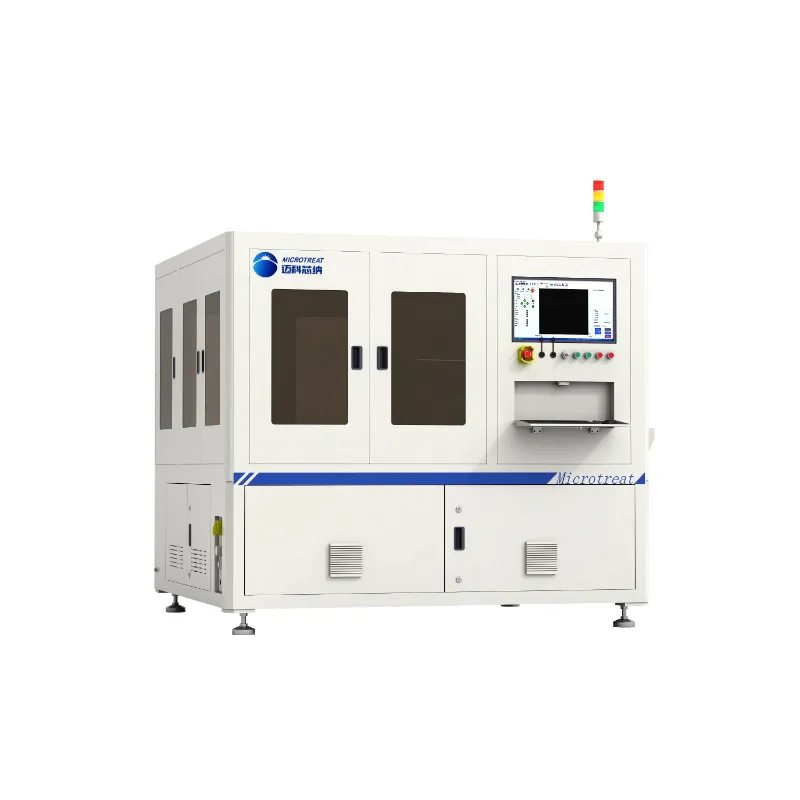

In modern manufacturing, precise measurements of kerf width and heat-affected zone (HAZ) are essential for ensuring the quality of laser-scribed materials. The Laser Scribing Machine has become a critical tool for various applications, especially in industries such as electronics, automotive, and materials science. This guide will delve into methods for measuring kerf width and HAZ, particularly focusing on three primary techniques: Optical Microscopy, Scanning Electron Microscopy (SEM), and White Light Interferometry.

Understanding the Importance of Kerf Width and HAZ Measurements

• Definition of Kerf Width and HAZ:
  • Kerf width refers to the width of the material removed by the cutting process.
  • HAZ is the area surrounding a weld or cut that has experienced changes in microstructure due to heat.
• Significance in Manufacturing:
  • Influences the quality of the finished product, affecting mechanical and thermal properties.
  • Improper kerf width can lead to wasted material and increased production costs.

Measurement Techniques Overview

• Optical Microscopy:
  • Uses visible light and a microscope to visualize surface features.
  • Pros: Relatively easy to use, cost-effective, and suitable for quick assessments.
  • Cons: Limited resolution may not capture finer details like cracks or peaks in the kerf structure.
• Scanning Electron Microscopy (SEM):
  • Provides high-resolution imaging using focused electron beams.
  • Pros: Can resolve nanoscale features, ideal for detailed structural analysis of kerf edges and HAZ.
  • Cons: More expensive and requires a vacuum environment; sample preparation can be complex.
• White Light Interferometry:
  • Employs light interference patterns to measure surface profiles.
  • Pros: Non-destructive, high accuracy in measuring surface topography, including kerf width and HAZ depth.
  • Cons: Equipment can be costly and requires understanding of optical principles for effective use.

Step-by-Step Guidance on Selecting Measurement Techniques

• Evaluate Project Requirements:
  • Identify specific quality metrics needed for your application (e.g., precision, resolution).
  • Consider the material type and thickness, as these affect measurement choice.
• Assess Available Resources:
  • Determine budget constraints for equipment and operational costs.
  • Evaluate the skill level of personnel who will operate the measurement systems.
• Choose the Right Technique:
  • If rapid assessments are needed, Optical Microscopy may be sufficient.
  • For high precision and detailed analysis, SEM is the preferred choice.
  • White Light Interferometry is recommended for non-destructive evaluation of intricate features.

Real-World Applications of Measurement Techniques

• Electronics Manufacturing:
  • Kerf width measurements in printed circuit boards to ensure optimal connectivity.
  • HAZ measurements of laser-welded components to guarantee electrical integrity.
• Aerospace and Automotive:
  • Precision measurements of kerfs in composite materials used in structural components.
  • Monitor HAZ effects on metal components that can affect safety.

Conclusion and Key Takeaways

• Recap of Best Practices:
  • Always align measurement techniques with project goals for optimal results.
  • Invest in training personnel for accurate results from sophisticated equipment.
• Continued Learning:
  • Stay updated on advancements in measurement technology and techniques.
  • Engage with industry forums and publications to discover innovative practices.

Additional Considerations for Enhanced Measurement Accuracy

• Acknowledge environmental factors that can affect measurements, such as temperature and humidity.
• Regular calibration of equipment to maintain measurement accuracy and reliability.
• Documentation of measurement processes for consistent methodologies across projects.

For further exploration of this topic and to stay abreast of cutting-edge techniques in kerf width and HAZ measurement, consider resources available through institutions such as NIST and the American Physical Society.
